Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Gambar besar : Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Detail produk:

Tempat asal:	Jiangsu, Tiongkok
Nama merek:	Global Power
Sertifikasi:	CE / ISO
Nomor model:	GP P1368

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1Set
Harga:	negotiable
Kemasan rincian:	kemasan kotak busa plastik atau kayu lapis
Waktu pengiriman:	25 hari setelah menerima uang muka
Menyediakan kemampuan:	2000 set / tahun

Kontak

Detil Deskripsi produk

Nilai daya:	1368kw 1710kva	Kekuatan siaga:	1509kw 1886kva
Frekuensi:	50/60 hz	Cara yang Menyenangkan:	Semangat Diri
Silinder mesin:	12	Metode Pendinginan:	Oleh radiator
Peraturan:	AVR	Sped:	1500/1800 RPM
Menyoroti:	brushless alternator Generator , engine generator set

Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Test before shippment:

Each Generator Set shall be put into commission more than 4 hours totally, tested on idle load, fully load and 10% overload
Noise level shall be tested.
All of the meters on the control panel shall be tested.
The appearance of the Set and the label, nameplate shall be tested. "
Voltage available: 50Hz: 380-400-415V/ 220-230-240V; 60Hz: 220-380-416-440-480V/ 110-208-220-240V. Any special voltage is also available as cilent's request.

Guarantee for Our Generators:

Guarantee Period: One year or 1000hours whichever comes first.
During the guarantee period, the spare-parts will be sent through your shipping agency in China.
Spare-parts can also be sent thought FEDEX or DHL, but the shipping cost will be charged on both sides for 50%.
24 hours service hot-line is available for customers.

Technical Specifications :
Genset:

Prime Power (kw/kva)	1368/1710
Standby Power (kw/kva)	1509/1886
Rated Voltage (V)	400/230
Voltage Recovery Time	≤1S
Rated Current (A)	2462
Rated Frequency (Hz)	50
Frequency Recovery Time	≤5S
Wave Distortion	≤5%, sine wave
Running Noise db(A)/7m(Silent type)	75
Battery capacity (V-Ah)	24V 100Ah
Open Type-Dimension (LWH) (mm)	480017002550
Open Type-Weight (kg)	9500
Soundproof Type- Dimension (LWH) (mm)	/
Soundproof Type-Weight (kg)	/
Fuel Tank Capacity(L)	/
Continuous Running Time(hr.)	6

Engine:
Model 4012-46TAG3A

Engine brand	Perkins
Output Power (kw)	1500
Cylinder No. & Config.	12 in “V”
Combustion System	direct injection
Compression Ratio	13.6:1
Displacement (L)	45.842
Bore X Stroke (mm)	160*190
Engine Speed (r/min)	1500
Speed Governing	Electronic
Starting System	24V DC Electric
Filter System	Dry oil filter/Fuel filter/Oil filter
Cooling system	Water-cooled
Coolant capacity (L)	207(Temp.) / 210(Trop.)
Fuel Consump. (g/kw·h)	208
Oil Capacity (L)	177

Alternator:
Model PI734D

Alternator brand	Stamford
Rated Power (kw)	1320
Excitation System	Brushless, self-exciting
Voltage Regulation Mode	AVR
Connection Type	3phase,4wires,”Y” connection
Pole No.	4
Rotation Speed (r/min)	1500
Temperature Rise (℃)	125
Insulation class	H
Voltage Regulation (0 load)	≥95%～105%
Voltage accuracy	≤±1%
Protection Grade	IP23
Telephone Influence Factor	TIF＜50
Harmonic Coefficient	THF＜2%

Control System:

automatic cutter which is suitable for the generator power
urn on key
A device to measure the generators speed
Counter for measuring the Operating hours
Device to measure the current overload with a switched current
A device to measure the battery voltage
Voltmeter with a voltage exchanger
A device to measure the frequency
Thermostat to regulate the voltage
A device to measure the oil pressure
Alerting lamps indicating low and high temperature
Controller of the current increase and short circuit
Emergency stop button

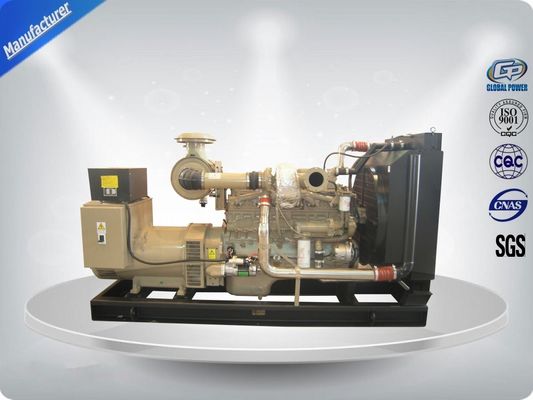

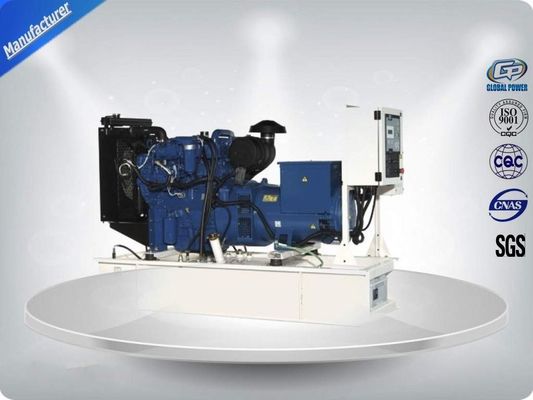

Our Picture :

Three phase 4012-46TAG3A Open Diesel Generator efficiency with DeepSea controll moduel

Standard Supply Scope:

Diesel engine with Alternator
Standard Accessory: Exhaust Silencer, Flexible pipe, Battery & Connenct wire, Operation Manual.
Control system will use Deep Sea DSE AMF module, LCD display all engine parameter, alternator parameter, and fully alarm & protection function.
Radiator is standard , Strat battery and charger

Select Supply Scope:

Silent ,Mobile,Container,weatherproof types canopy and trailer
Connect to main ,all panels:Circut Breaker,ATS,etc
Water & oil heater, oil-water separator, air breaker, base fuel tank.

Genset Construction :

All our gensets are built with original diesel engines coupled to a brushless alternator mounted onto a steel base frame with channel supports on anti-vibrating rubber mountings.
The fuel tank is fabricated of mild steel and is incorporated into the base frame.
The size of the tank is dependent on the size of the generator.

Label:
