Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Merek mesin: | Mitsubishi,cummins, MTU, Ricardo,Isuzu,lovol,FAW xichai | Voltase: | 400/230V |
|---|---|---|---|
| Pengaturan kecepatan: | Elektronik | Kecepatan Mesin (r/mnt): | 1500 /1800rpm |
| Sistem Pendingin: | Pendinginan Air | Frekuensi yang Dinilai: | 50 /60 Hz |
| Merk Alternator: | Meccalte, Stamford, kekuatan global | Yang lain: | ATS, Tangki Bahan Bakar, Jaket pemanas air.... |
| Menyoroti: | marine diesel genset,power generating sets |
||

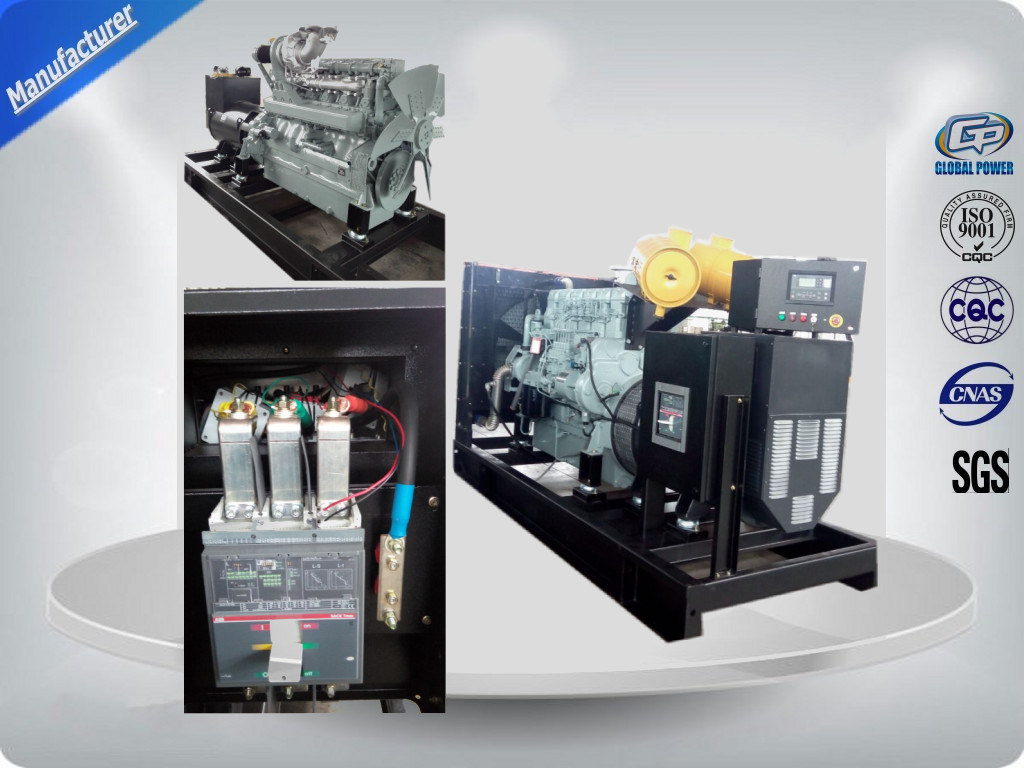

Mitsubishi series diesel generator set 600 - 2250 kva Military quality standard
Genset Features:
Engine Features:
1. Genuine Brand New diesel engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Technical Specifications :
|
Genset |
Voltage Recovery Time |
≤1S |
|
|
Rated Current (A) |
504 |
||
|
Rated Frequency (Hz) |
50 |
||
|
Frequency Recovery Time |
≤5S |
||
|
Running Noise db(A)/7m(Silent type) |
75 |
||
|
Battery capacity (V-Ah) |
24V 100Ah |
||
|
Fuel Tank Capacity(L) |
/ |
||
|
Engine |
Cylinder No. & Config. |
6, in-line |
|
|
Combustion System |
direct injection |
||
|
Compression Ratio |
16.3:1 |
||
|
Displacement (L) |
12.5 |
||
|
Bore X Stroke (mm) |
130*157 |
||
|
Engine Speed (r/min) |
1500 |
||
|
Speed Governing |
Electronic |
||
|
Starting System |
24V DC Electric |
||
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
||
|
Cooling system |
Water-cooled |
||
|
Alternator |
Alternator brand |
Stamford, Mecc-alte,Faraday |
|
|
Excitation System |
Brushless, self-exciting |
||
|
Voltage Regulation Mode |
AVR |
||
|
Connection Type |
3phase,4wires,”Y” connection |
||
|
Pole No. |
4 |
||
|
Rotation Speed (r/min) |
1500 |
||
|
Temperature Rise (℃) |
125 |
||
|
Insulation class |
H |
||
|
Voltage Regulation (0 load) |
≥95%～105% |
||
|
Protection Grade |
IP23 |
||
Competitive service:
1) More than 15 years advanced production experience.
2) As OEM factory, we have obvious competitive in price and leading times.
3) Provide debugging and maintenance service to you.
4) Professional 8 Hours testing for Generator before shipment.
5) 1000 hours warranty on the spare parts free provide & technical support in machine life.
Warranty and Maintenance:
1) Guarantee Period: One year or 1000 running hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent through your shipping agency in China.
3) Spare-parts can also be sent by air express.
4) 24 hours service hotline is available for customers.
