Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Jenis Unit: | Kebisingan Rendah, kedap suara | Metode Instalasi: | Tetap |
|---|---|---|---|
| Modus eksitasi: | Exciter Berputar AC | Penggunaan: | Unit Umum |
| Metode Pendinginan: | Sistem Air Dingin | Keluaran: | AC Tunggal/Tiga Fasa |
| Sistem yang Dioperasikan Tiang: | petunjuk | Voltase: | 110V, 120V, 220V, 230V, 240V |
| Tingkat Perlindungan: | IP21-IP23 | ||
| Menyoroti: | portable light towers,telescopic light tower |
||

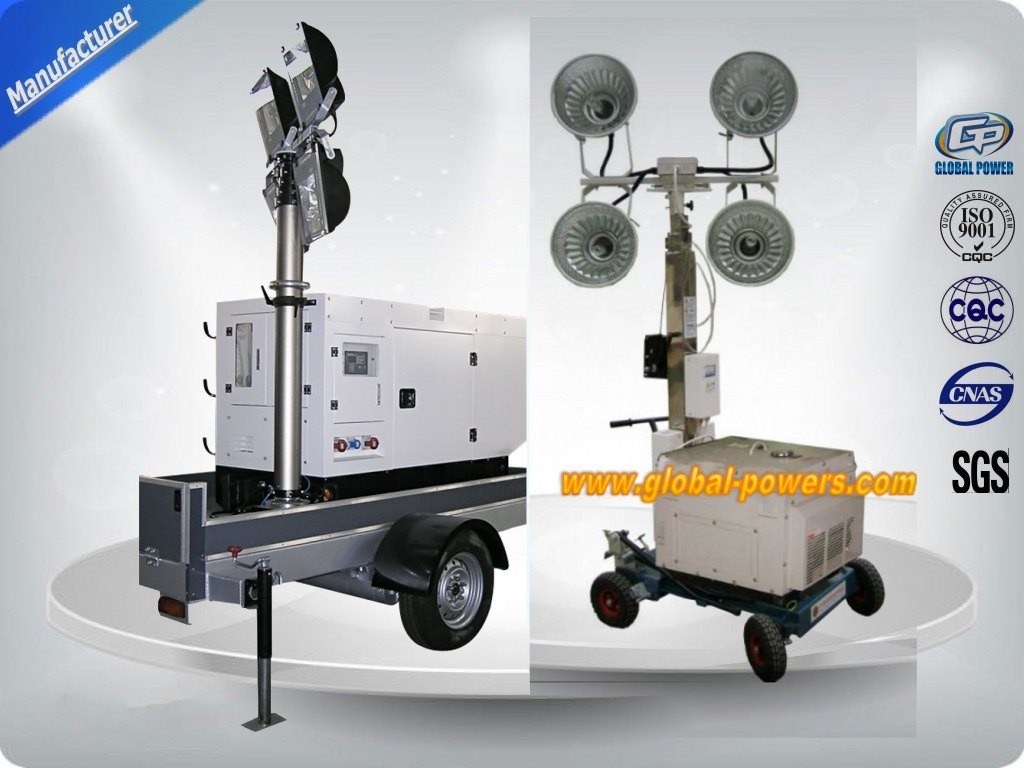

Brushless Generator Mobile Light Tower Soudproof Three Phase 4 Poles 5-20Kw
Engine Features:
1. World most famous brand diesel engine: Kubota/with yanmar engine /with with perkins engine engine/with cummins engine
2. Mufti-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily
Alternator Features:
1. World famous brand AC alternator, Stamford, Meccalte,Faraday,
2. Brushless, 4 poles, rotation magnet
3. IP21-23(NEMA1) enclose is standard for all industrial alternators
4. H class insulation system
5. AVR self-regulated, voltage regulation rate:
Standard Configuration of GLOBAL POWER mobile lighting tower design:
1. Japan Kubota engine, UK engine, Cummins engine, Yangdong engine
2. Original Stamford alternator, faraday, Meccalte alternator or Copy Stamford alternator
3. Weather proof and Soundproof canopy design
4. Control panel : Deepsea, Comap,Smartgen...
5. DELIXI or CHINT circuit breaker
6. 50hours Continuous Working Hours Base Fuel Tank7. Anti-Vibration Mounted System
8. Battery and battery charger
9. Industrial silencer and flexible exhaust hose
10. Big wheels for Road
11. Hydraulic operated mast and Manual operated mast
12. 8M/9M/11M high mast
13. Muilt-options of lamps: 4x1000W, 4x1500W, 4x2000W, 6x1000W, 6x1500W, 6x2000W
Specification
| Mast & Lamp | Max. extension of mast | 4.8m | 9m | 9m |
| Stages | 2 | 3 | 3 | |
| Total power of lamps | 4*400W | 4*1000W | 4*1000W | |
| Light capacity | 4*250000 lumen | 4*110000lumen | 4*110000lumen | |
| Lifetime of lamp | 2000 hours | 5000 hours | 5000 hours | |
| Generator | Model | END6500I | EN-10k | END-20C |
| Rated Power | 50Hz 4.2kw | 50Hz 6.0kw | 50Hz 20kw | |
| 60Hz 5.0kw | 60Hz 8.0kw | 60Hz 23kw | ||
| Standby Power | 50Hz 4.5kw | 50Hz 7.0kw | 50Hz 22kw | |
| 60Hz 5.5kw | 60Hz 9.0kw | 60Hz 25kw | ||
| Engine model | RP186FA | Kubota D1105-BG | with perkins engine 1003G | |
| Fuel tank capacity | 16L | 100L | 120L | |
| Prime fuel consumption | ≤1.65L/h | ≤2.0L/h | ≤5.25L/h | |
| Trailer | Stabilizer Support | 4*manual | 5*manual | 5*manual |
| Tire Size | Diameter=25cm | Diameter=25cm | Diameter=25cm | |
| Anti-wind capacity | ≤6 | ≤10 | ≤10 | |
| Dimension | Dimension(mm) | 1300*840*2600 | 4400*1200*1930 | 4400*1450*2100 |
| Net Weight | 350kg | 870kg | 1950kg |
Benefits of GLOBAL POWER mobile lighting towers:
1. Stable function, convenient service;
2. Low operating cost results in optional economy;
3. Gets the job done wherever you are;
4. Ease of installation, operation and maintenance.
GLOBAL POWER mobile lighting tower testing items
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Lamps testing
8) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection
