Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Penggunaan: | pencahayaan darurat | Frekuensi: | 50Hz, 60Hz |
|---|---|---|---|
| Stroke: | Empat ketukan | Kekuatan Lampu: | 4000W |
| Kecepatan (Mesin Diesel): | 1500/1800 rpm | Sistem yang Dioperasikan Tiang: | petunjuk |
| Nilai Tegangan: | 110V, 120V, 220V, 230V, 240V | Sumber Daya: | Pembangkit Diesel |
| Menyoroti: | portable light towers,trailer mounted light towers |
||

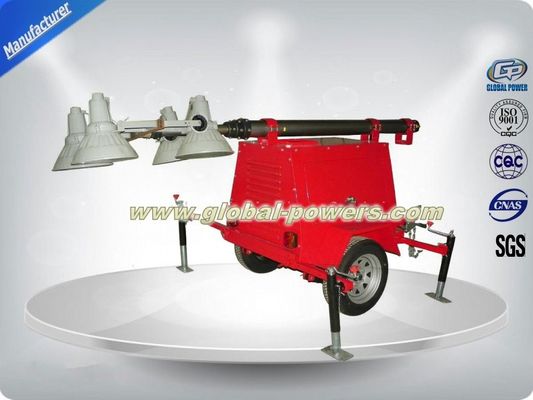

Lead Acid Battery Generator Light Tower Trailer For Emergency Lighting
1) 30ft(9meters) manual operated mast
2) With Kubota, Parkins, Yanmar or Changchai diesel engine
3) Factory supply directly, cheaper price, faster delivery, better service
4) 4x1000W metal halide lights as standard, 4x1500W/4x2000W/6x1500W/4x400W LED as optional
5) Single-axle trailer mounted, 60km/h max. speed
6) Water-proof controller, inside-canopy controller board
Specification
| Major Specification | Mobile Light Tower |
| Machine Size(L * W * H)(mm) | 4360*1430*1450 |
| Mast Height(mm, Fully Extended) | 9000 |
| Weight (Dry, kg) | 890 |
| Engine Characters | 4 cycles, In line,Watercooled diesel |
| Frequency(Hz) | 50/60 |
| Speed(rpm) | 1500/1800 |
| Continued Power(KW) | 6 |
| Number of Cylinders | 3 |
| Combustion Type | E-TVCS/Direct injection |
| Engine Aspiration | Natural |
| Alternator | Brushless & single phase (Linz,Italy) |
| Rating Voltage (V) | 230 |
| Alternator Insulation | Class H |
| Fuel Tank Capacity | 170 liters ( 45US gallons ) |
| Fuel Tank Operating Hours | 120 hours |
| Type of Lights | Oval, metal halide floodlight |
| Number & Power of Lights | 4*1000W |
| Mast extension | Manually |
| Mast Rotation | 330° Manually |
| Light Bar Tilt | Manually |
| Stabilizing Legs | Manually |
| Suspension & Braking System | Leaf spring |
| Hitch & tow bar | Ball or O ring & stable hitch in height |
| Tire & rim size | 14" |
| Noise level | 72dB(A) at 7 meters away |
GLOBAL POWER mobile lighting tower testing items
1) Parts fault testing
2) Fue tank pressure testing
3) Bolt tightening torque testing
4) Painting thickness testing
5) Voltage bearing and insultion testing
6) Noise testing
7) Lamps testing
8) Loading testing: All qualified generator sets are subjected to a comprehensive performance test which inclides 0% load, 25% load, 50% load, 75% load, 100% load and 110% load and to check, verify that all control systems, alarm and shut-own protection.
After-sales Service:
GLOBAL POWER grant our clients a twelve-month-period or 1000 running hours warranty for any machine exported from us.
During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective part will be repaired or replaced free of charge, at our discretion.
There are two ways we can ship the compensated spare parts:
(1) Upon the urgent request from our clients, we will ship the compensated spare parts by international courier, such as DHL, TNT, UPS or Fedex. The courier will arrive the designated destination within 5-7 days. The client will assume the courier expense.
(2) For the regular claim for the spare parts, we will ship the compensated spare parts together with next shipment of new machines. The shipment expense is free.
