Blow Moulding High Pressure Air Compressor / Reciprocating Air Compressor With Tank

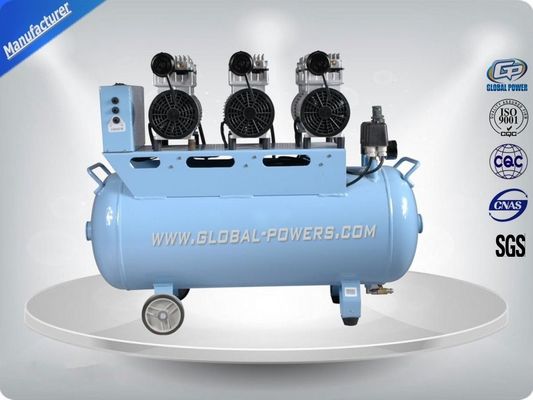

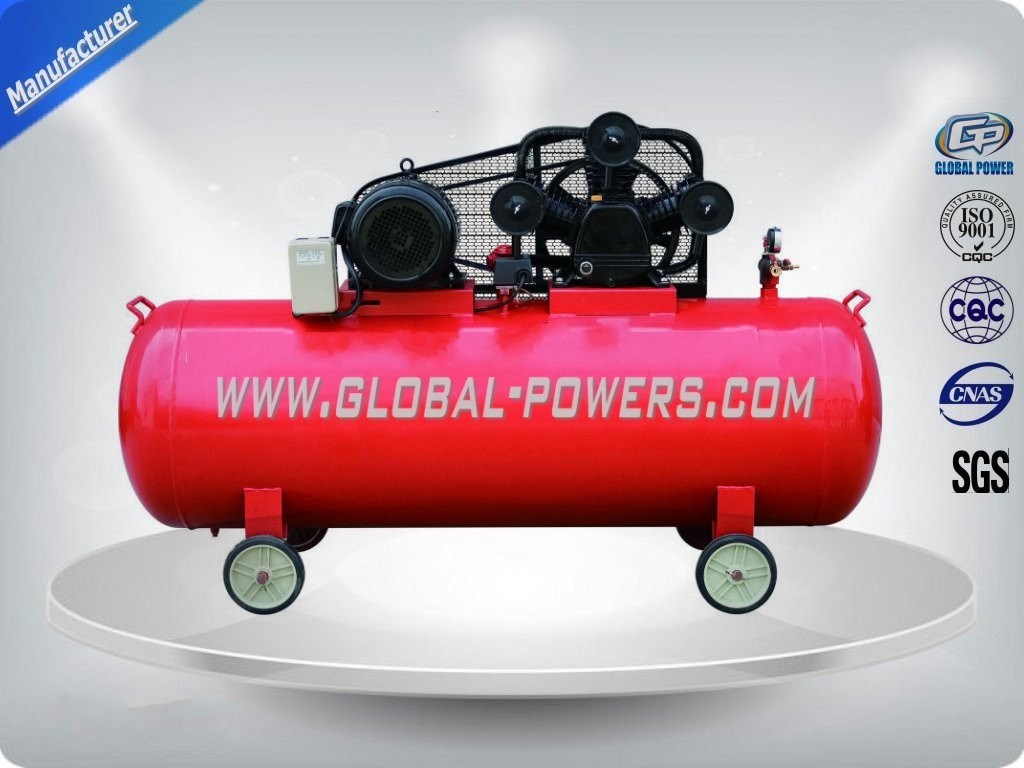

Gambar besar : Blow Moulding High Pressure Air Compressor / Reciprocating Air Compressor With Tank

Detail produk:

Tempat asal:	Jiangsu, Tiongkok
Nama merek:	Global Power
Sertifikasi:	ISO
Nomor model:	dokter umum

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	5 buah
Harga:	Negociable
Kemasan rincian:	kasus kayu lapis
Waktu pengiriman:	20 hari

Kontak

Detil Deskripsi produk

Tarif Pengiriman Udara:	1,6m3/mnt	Tekanan Kerja:	30bar
Jenis:	Penggerak Bolak-balik Piston	Mode:	Pelumasan Motor Listrik AC
Gaya:	Dilumasi Minyak	Berat:	600kg
Pasar:	Global	Kode Hs:	8414809090
Menyoroti:	portable air compressor , quiet air compressor

Blow Moulding High Pressure Air Compressor / Reciprocating Air Compressor With Tank

Product Description:

Our 30bar Bottle Blow Moulding AC Electric Reciprocating Piston Air Compressor with Tank is applied to industries as PET bottle blowing, air leak test, pressure test etc. our compressor can run 24h/7dcontinually.

Valve plate: made from Sweden SS
Piston ring: monomer cast piston rings, lifetime 3 times
Piston: boosting piston is cast by heavy duty cast iron
Connecting rod: connecting rod with needle bearing
Crankshaft: heavy duty, low noise, long lifetime
Block cooling fan wheel: moving balance iron wheel fan to reduce vibration
Pressure controller: imported renowned brand
Cooling & filtration: high efficiency cooling and filtration from 1st to 2nd stage, 2nd stage low temperature and clean
Drain: auto electric drain (option)

Model Specification:

3Mpa piston air compressor

Block type	PISTON	PISTON	PISTON	PISTON	PISTON	PISTON	PISTON
Volume(m3/min)	0.6	0.8	1.0	1.2	1.6	2.0	3.0
W.Pressure(Mpa)	3.0	3.0	3.0	3.0	3.0	3.0	3.0
RPM(r/min)	830	800	780	780	830	830	780
Lubrication	splash	splash	splash	splash	splash	splash	splash
drive	belt	belt	belt	belt	belt	belt	belt
cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling	Air cooling
Motor power(Kw)	7.5	7.5	11	15	18.5	2X11	30
Power source(v/Hz)	380/50	380/50	380/50	380/50	380/50	380/50	380/50
noise(dB (A))	≤72	≤72	≤78	≤78	≤85	≤85	≤85
Cylinders diameter(mm)	2X¢95 ¢55	2X¢100 ¢55	2X¢120 ¢65	2X¢120 ¢65	2X¢135 ¢120 ¢65	4X¢120 2X¢55	¢210 ¢120 ¢100
size(mm)	1470(L) 530(W) 1020(H)	1490(L) 600(W) 1160(H)	1550(L) 730(W) 1280(H)	1620(L) 730(W) 1280(H)	1900(L) 850(W) 1600(H)	1900(L) 900(W) 1400(H)	1850(L) 1000(W) 1100(H)
weight(Kg)	290	430	480	520	600	600	1150

Blow Moulding High Pressure Air Compressor / Reciprocating Air Compressor With Tank
