Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Merek Mesin:: | MTU, Cummins, Perkins, VMAN tersedia | Alternator:: | Stamford / Meecalt / salin Stamford |
|---|---|---|---|
| Model Mesin:: | 12V2000G65 | Nilai Frekuensi (Hz): | 50/60 hz |
| Jenis:: | Wadah | Jumlah Fase: | 3 |
| Dimensi P*W*T/mm: | 6300*2200*2500 | Berat/KG: | 11600 |
| Alternator: | HCI 634J/824 | ||
| Menyoroti: | Canopy Generator Set,3 phase diesel generator |
||

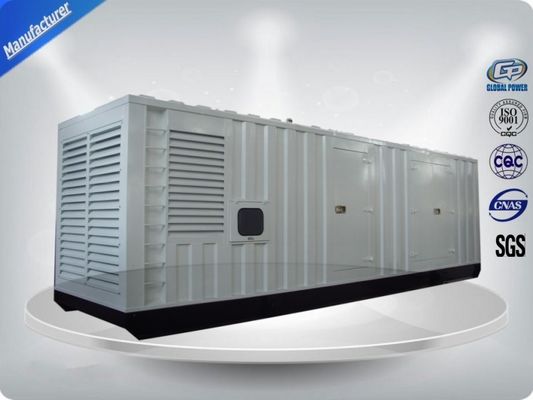

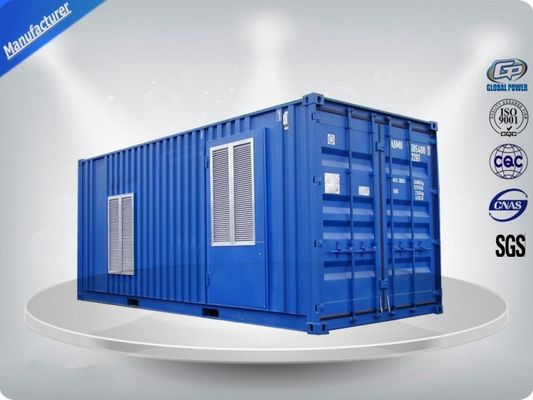

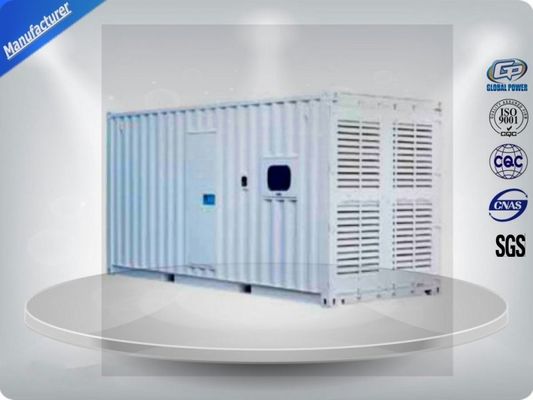

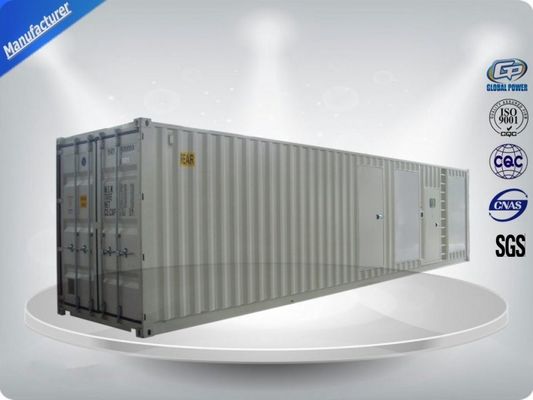

500-1100 Kw/ Kva Canopy Industrial Diesel Generators With 192 g/kw·h Fuel Consump
Generator data
|
Prime Power (kw/kva) |
1200/1500 |
|
Standby Power (kw/kva) |
1320/1650 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
2165 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
6350*2200*2500 |
|
Open Type-Weight (kg) |
12300 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
/ |
|
Soundproof Type-Weight (kg) |
/ |
|
Fuel Tank Capacity(L) |
/ |
|
Continuous Running Time(hr.) |
6 |
Engine specifications
Engine
Main features:
l Twelve-cylinder, water-cooled, in “V” diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
Model 12V4000G23
|
Engine brand |
MTU |
|
Output Power (kw) |
1420 |
|
Cylinder No. & Config. |
12,in “V” |
|
Combustion System |
direct injection |
|
Compression Ratio |
16.5:1 |
|
Displacement (L) |
57.2 |
|
Bore X Stroke (mm) |
170*210 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic / ADEC |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
460 |
|
Fuel Consump. (g/kw·h) |
192 |
|
Oil Capacity (L) |
260 |
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
