Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Merek Mesin:: | Perkins | Daya Keluaran (kw):: | GP P1600 |
|---|---|---|---|
| Alternator:: | Stamford / Meecalt / salin Stamford | Model Mesin:: | 4016TAG1A /1588 |
| Nilai Frekuensi (Hz): | 50/60 hz | Jenis:: | Wadah |
| Jumlah Fase: | 3 | Dimensi Tipe Terbuka: | 4800*1700*2550 |
| Berat/KG: | 9000 kg | Alternator: | YANG 7E/1520 |
| Menyoroti: | Canopy Generator Set,containerised generator set |
||

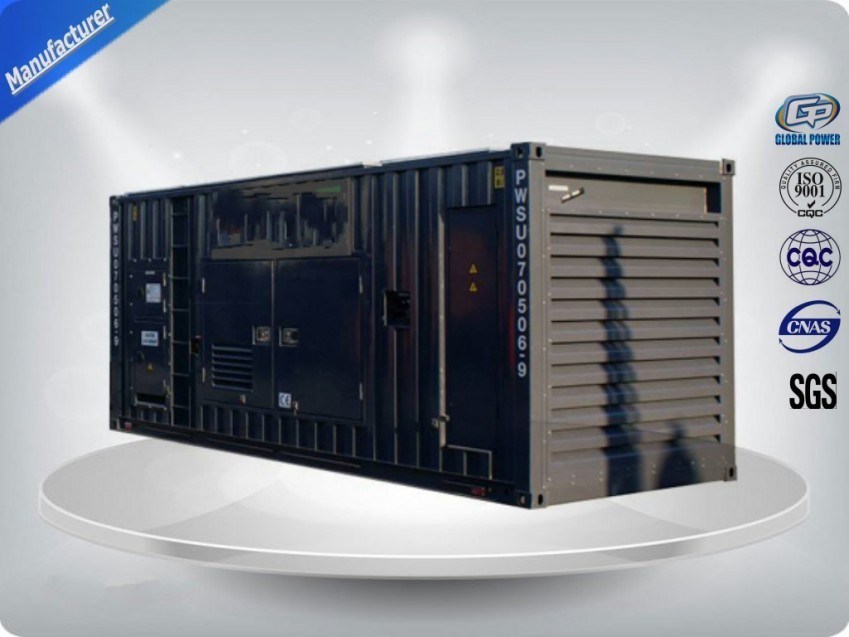

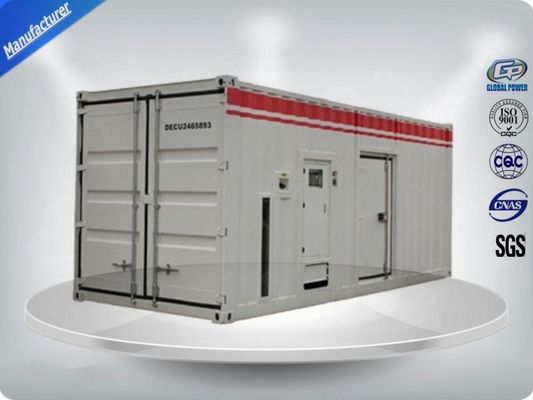

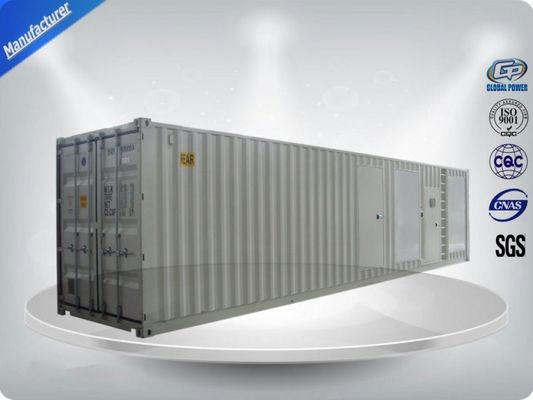

Electronic Start Diesel Engine Generator Set , Diesel Power Generator Set
Generator data
Diesel Generator GPP1600 (three phase)
|
Prime Power (kw/kva) |
1600/2000 |
|
Standby Power (kw/kva) |
1760/2200 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Current (A) |
2880 |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
|
Open Type-Dimension (L*W*H) (mm) |
4800*1700*2550 |
|
Open Type-Weight (kg) |
9500 |
|
Soundproof Type- Dimension (L*W*H) (mm) |
/ |
|
Soundproof Type-Weight (kg) |
/ |
|
Fuel Tank Capacity(L) |
/ |
|
Continuous Running Time(hr.) |
6 |
Engine specifications
Engine
Main features:
l Sixteen-cylinder, water-cooled, in “V” diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
Model 4016TAG1A
|
Engine brand |
Perkins |
|
Output Power (kw) |
1588 |
|
Cylinder No. & Config. |
16 in “V” |
|
Combustion System |
direct injection |
|
Compression Ratio |
13.6:1 |
|
Displacement (L) |
61.123 |
|
Bore X Stroke (mm) |
160*190 |
|
Engine Speed (r/min) |
1500 |
|
Speed Governing |
Electronic |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
|
Coolant capacity (L) |
316 |
|
Fuel Consump. (g/kw·h) |
205 |
|
Oil Capacity (L) |
237.2 |
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
