Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
| Merek Mesin:: | Cummins,perkins, MTU.Doosan..tersedia | Nilai Daya (kw):: | 280kW/350kVA |
|---|---|---|---|
| Merek alternator:: | Stamford / Meecalt / salin Stamford | Model Mesin:: | 6LTAA8.9-G3 |
| Frekuensi (Hz): | 50 atau 60 | Tipe Pembangkit:: | trailer seluler terbuka, kedap suara |
| Merek Modul Kontrol: | Comap, SmartGen, DeepSea | Model alternator: | HCI444E |
| Kemasan: | Busa Plastik atau Kotak Kayu Lapis | Rentang Kekuatan Cummins: | 20kva-1500kva |
| Menyoroti: | marine diesel genset,Emergency Generator Set |
||

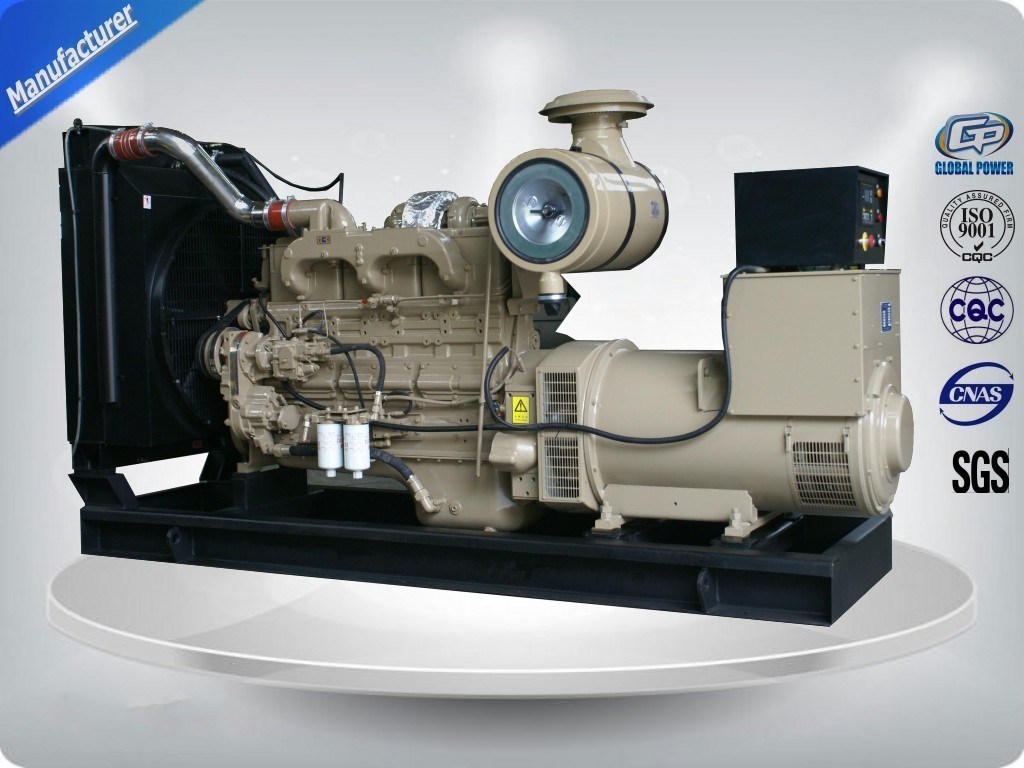

Cummins diesel engie diesel generator set from 20KVA - 1650KVA for emergency power supply
Basic Specification:
Powered by cummins engine diesel generator from 20KVA - 1650KVA
Safety – Stability – Economy - Sufficient power
1. Our cooperate with famous diesel engine – Cummins, Deutz, Lovol/UK, Perkins, Weichai, MTU, Mitsubishi (Heavy) and so on.
2. Brushless alternator -- Stamford, Meccalte, Marathon, Faraday.
3. High-quality steel are thickness -- 2MM to 4MM
4. High density sound-absorbing material -- sound insulation, fireproofing
5. New design of turn-back type for air inflow & air outlet which can reduce the noise and advance engine efficiency.
6. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
7. Double open door on both sides of the gensets. Spacious doors can check for every part of the engine and alternator.
Diesel Generator GPC280 (three phase)
|
Prime Power (kw/kva) |
280/350 |
|
Standby Power (kw/kva) |
308/385 |
|
Rated Voltage (V) |
400/230 |
|
Voltage Recovery Time |
≤1S |
|
Rated Frequency (Hz) |
50 |
|
Frequency Recovery Time |
≤5S |
|
Wave Distortion |
≤5%, sine wave |
|
Running Noise db(A)/7m(Silent type) |
75 |
|
Battery capacity (V-Ah) |
12V 100Ah |
Engine specifications
Engine
Main features:
l Water-cooled, in-line diesel engine
l Efficient fuel system for max power output and durability
l Large-capacity air cleaner
l Cost effective, fuel efficient and reliable performance
l Functional engine with compact structure
l Excellent after-sales service and sufficient spare parts supplying
l Easy installation and ready access for routine maintenance
Technical data
|
Engine brand |
Cummins |
|
Output Power (kw) |
313 |
|
Cylinder No. & Config. |
in-line |
|
Combustion System |
direct injection |
|
Speed Governing |
Electronic |
|
Starting System |
24V DC Electric |
|
Filter System |
Dry oil filter/Fuel filter/Oil filter |
|
Cooling system |
Water-cooled |
Features and benefits
l Tightly structure, excellent design and craft
l Excellent cooling system, reliable performance under the harshest conditions (ambient temperature up to 40℃ and altitudes up to 1000m)
l Self-diagnostic capability simplifies troubleshooting
l LCD display shows system status and setup information
l Automatic voltage regulator protects your sensitive electronics from harmonic distortion and unstable power quality
l Soundproof type: Very quite running–75dB(A)at 23ft(7m) at normal load.
l Enclosed muffler for added quietness
l Service and maintenance accessible through easy-latch side service door
Quality control of Global power Genset
1. The genset canopy can be designed by customers demand free of charge.
2. Noise level can be designed by customer demand, standard noise level is 70-73DB at 7m. Super silent is 60-65DB at7m.
3. Canopy color can be painted free of charge by customer demand. It is high quality paint.
4. All connection components and door lock are stainless steel.
5. We added oil filling inlet with lock
6. The oil box is separate madeand then welded to the base frame, not by simple welding on the base frame. It is to make sure there is no oil leakage
7. The base frame is with forklift mouthwhich is easy to load and discharge
8. For Logo, we can paint customer's logo when the order is more than 5sets.
9. For technical specification or question, we can support you by our strong technical team.
